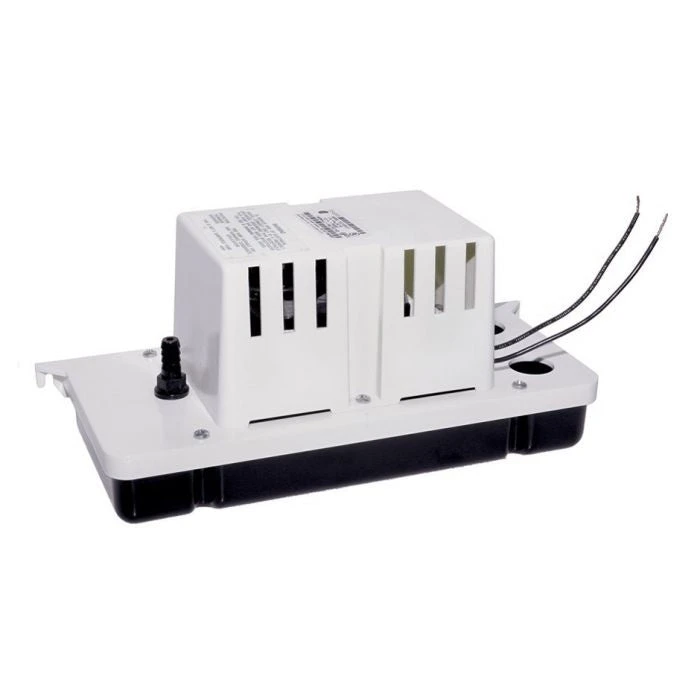

Little Giant VCC-20S Condensate Tank Pump

VCCA-20S low profile pump is primarily used in locations with low condensate drain and for OEM equipment such as portable dehumidifiers, refrigerated beverage display cases and open top cold storage cases with limited room for standard size condensate pump.

Designed for automatic collection and removal of condensate from air conditioning, refrigeration, and de-humidification equipment when gravity drainage is not possible or practical. The low tank height of the VCCA Series allows these condensate pumps to be used where other condensate pumps will not fit.
Suitable for high efficiency condensing furnace and boiler equipment applications.

Benefits

• Twist-off Check Valve Adapter – Easy to remove 9.5mm (3/8“) discharge adapter when installing or removing tube or when cleaning pump tank, adapter for 6mm (1/4”) tubing included
• Manual Test/Maintenance Lever – Manually test operation of pump without need of filling the tank. Convenient for draining pump during cleaning/maintenance
• Rubber Feet – Rubber feet installed from factory help isolate noise from vibration when pump is operating
• 3 Inlets – 3 inlet openings to accommodate more condensate producing equipment to drain into pump
• Closed inlets – Knock-out plug keep unused inlets closed to keep dirt and bugs from getting inside tank



Features:
Fully automatic: start, stop safety switch.
Operating point: 4m: 70l/h.
Check valve outlet: 9.5 mm, for 9.5mm ID tubing.
1.0 Litre tank capacity.
Thermally protected motor.
IP 20.
CE, TUV and BAU approved.
Options: 6 m tubing.
Low profile for limited space applications.
1/30 HP motor.
ABS tank, motor cover, and volute.
Stainless steel shaft.
Removable 9.5 mm barbed check valve.
Specifications:
Capacity: 273 LPH at 0.31 m
Shut Off:  4.3 m
Liquid Temperature: 50C
Discharge: 9.5 mm
Impeller: Glass-filled polypropylene
Electrical:  230V, 50Hz 0.6 amps, 60 watts
Operation:  Automatic
