IWS Trident Flood & Drain System

  The IWS Trident pot is the latest development from IWS. Trident simplifies system set-up due to the use of rubber grommets, push-fit fittings and a built-in stand. By removing the need for additional components, IWS Trident is quick and easy to set up as part of a system.

Features including the central, bottom feed port; root rods and tie back rings allow plants to grow bigger, stronger, and more luscious than traditional pots. Additionally, IWS Trident comes with cloth inner pots, meaning Trident is suitable for any media type.

How Does it Work?

Nutrient solution is pumped from the FlexiTank to the IWS Control Unit at times and durations set by the user, with the IWS minute timer. The Control Unit is directly connected via IWS Pro pipework to the Trident pots. As the Control Unit fills up, nutrient solution is gravity fed to the Trident pots. Unlike traditional Flood & Drain pots, Trident fills from the bottom of the pot. This allows full saturation of the root zone and stops roots from blocking the pipe work.

IWS Trident pots are filled until the top float valve inside the IWS Control Unit is engaged, stopping the flow of water from the FlexiTank (the float height is the same as the top of the pots, preventing the system from ever flooding). You can easily add the Trident pot to any Pro IWS System.

 Each Trident pot comes with a cloth inner pot. This promotes plant growth by allowing air to pass through tiny holes and encouraging air pruning, creating a dense root zone. The cloth pot sits on top of root rods located at the base of IWS Trident. These rods encourage roots which break through the walls of the cloth pot to wrap around and prevent the roots from growing down the pipe and causing blockages.

The outer rim of Trident pots features tie back rings. These allow growers to spread the foliage and increase the width of their plant canopy.

WHY USE THE TRIDENT?

Simple Setup – IWS Trident is a quick and easy Flood & Drain System that requires no tools to set up.

No Stand Required –  Unlike traditional IWS systems, Trident has built-in risers. This removes the need for a stand and ensures ultimate drainage.

Cloth Inner Pots – IWS Trident is the only IWS pot compatible with a cloth inner pot. Cloth pots allow increased oxygenation of the root zone which improves plant growth and strength.

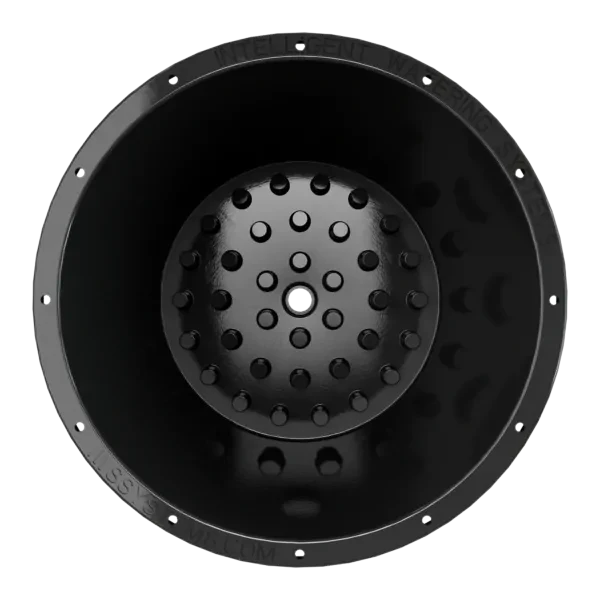

Root Rods – Prevent roots from blocking the feed pipe and keep the inner pot from sitting in any still water.

Bottom Feeding – Plants will be fed through the central, bottom feed port. This ensures optimum nutrient delivery to the root zone. Additionally, the location of the feed port allows the maximum amount of drainage.

Tie-Back Rings – The outer rim of Trident pots features tie back rings. These allow growers to spread the foliage and increase the plant canopy.

Adaptability – Trident is compatible with various growing mediums and when used as part of a Flood & Drain System can used up to 48 pots.

Instruction Manual

Download HERE

Why Choose This One?

• Precise control over how much time your root mass is submerged in the nutrient solution
• The outer pot is designed so no stand is required
• Quick and easy set up
• Faster filling and drainage due to central feed port
• Feeding timer controllable to 1 minute and can be located outside the grow room thanks to the 2m lead
• Kits available from 6 – 48 pots

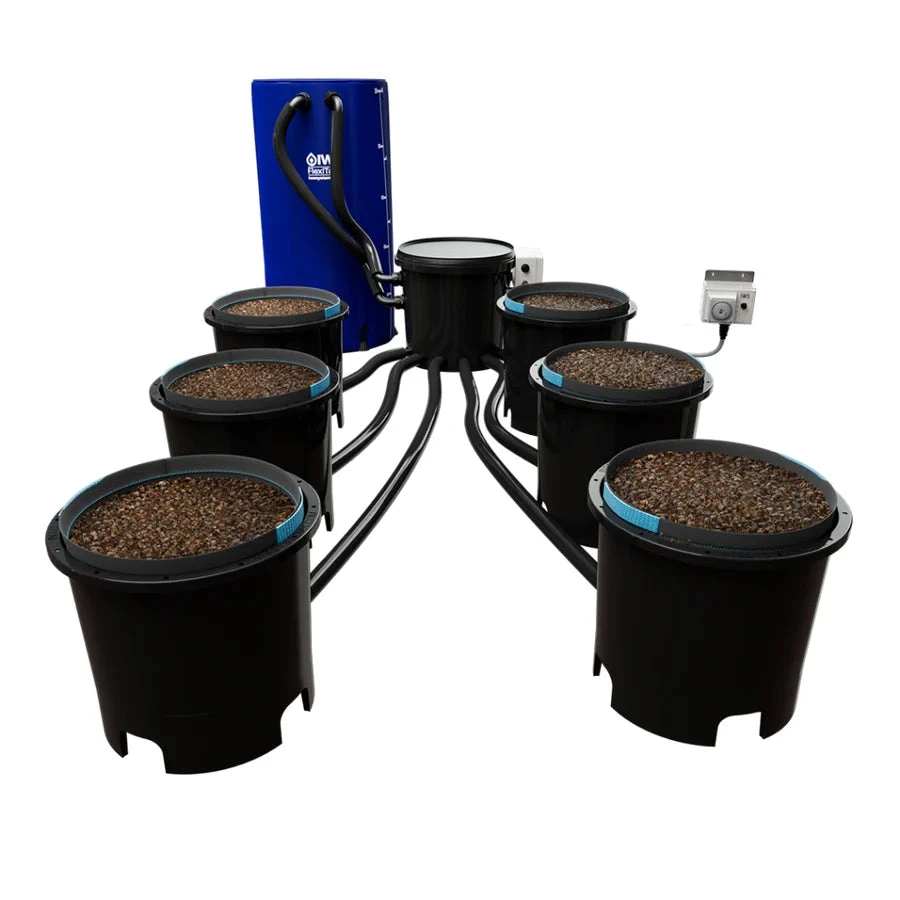

All Kits Contain:

1. Control Unit

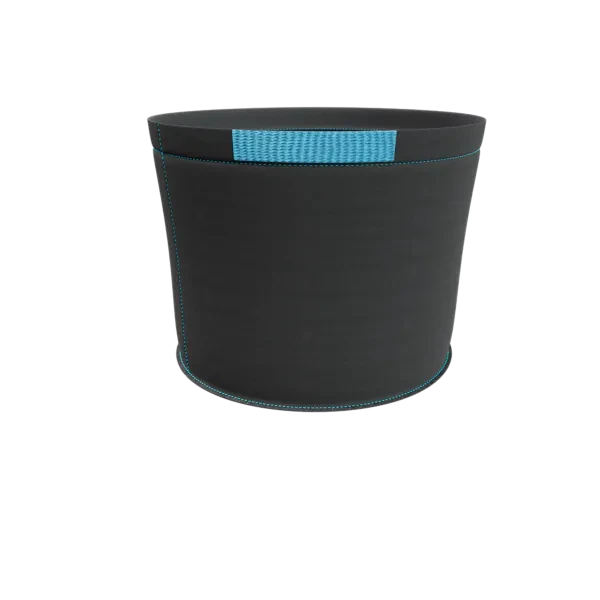

2. Inner Cloth Pot

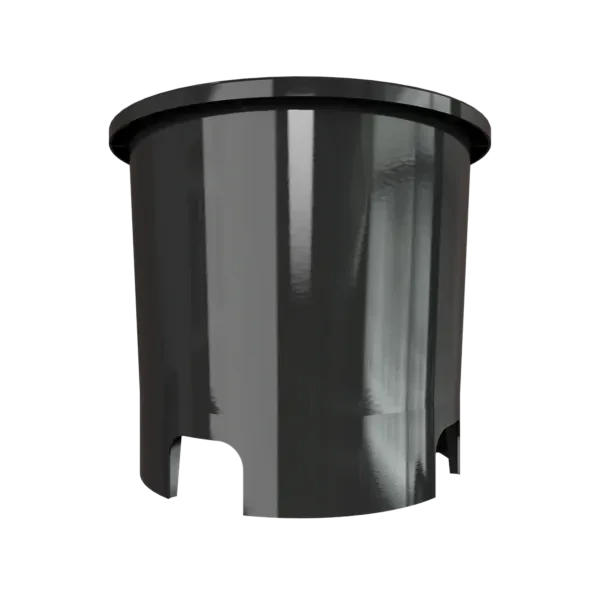

3. Trident Outer Pots (16L)
4. FlexiTank
5. Remote Timer
6. 25mm Fittings and Pipe

Tank Sizes Included with Kits:

Number of Pots	Tank Size Included
6	100L
12	250L
18	250L
24	400L
36	400L
48	400L
48	750L



For similar systems, check out Auto Drain, RTA Platforms, Flora Flex Platforms)
