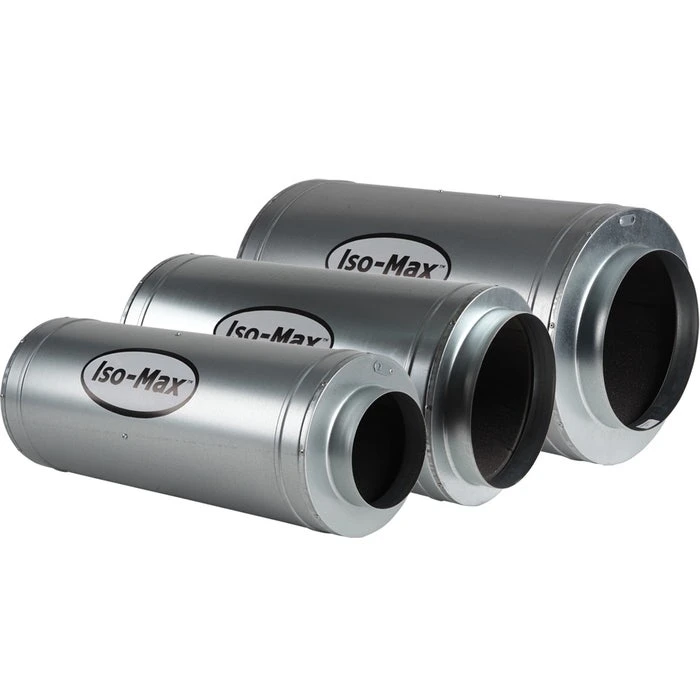

Can-Fan Isomax Silenced Acoustic Fan

Iso-Max is a totally unique diagonal tube fan, designed to be efficient, powerful and silent. Iso-Max uses the stator-rotor system that allows it to move large volumes of air for the amount of power used, whilst minimising fan noise..

The Iso-Max fans are integrated into a silencer. They have a full metal housing and for noise-reduction, a special type of foam is added. Its low weight, strong air performance and quietness makes Iso-Max the most advanced choice for a ventilation application.

• Silent, High airflow extractor fan
• Integrated silencing technology
• Energy saving
• Excellent build quality
• Available in a range of sizes up to 14 inch

Specifications:

6-Inch

Airflow: 310/30/410 m3/hr

Current: 0.2 amps

Power consumption: 52 watts

Full diameter: 230mm (9 inches)

Length: 680mm (26.7 inches)

Weight: 5.86kg (12.9 lb)



8-Inch- Controller

Airflow: 570/770/870m3/hr

Noise level: 55db

Current: 0.36/0.4/0.6 amps

Power consumption: up to 128 watts

Full diameter: 260mm

Length: 680mm

Weight: 7.7kg



8-Inch

Airflow: 870m3/hr

Noise level: 55db

Current: 0.36/0.4/0.6 amps

Power consumption: up to 128 watts

Full diameter: 260mm

Length: 680mm

Weight: 7.7kg



10-Inch

Airflow:1480m3/hr

Noise level: 52db

Current: 0.9 amps

Power consumption: 160 watts

Weight: 10.14kg

Full diameter: 310mm

Length: 680mm



10-Inch-L

Airflow: 2310 m3/hr

Current: 1.7 amps

Power consumption: 290 watts

Full diameter: 350mm (13.77 inches)

Length: 680mm (26.77 inches)

Weight: 13.34kg



12-Inch

Airflow: 2380 m3/hr

Noise level: 54db

Current: 1.7 amps

Power consumption: 280 watts

Weight: 13.33kg

Full diameter: 350mm

Length: 680mm



12-Inch-L

Airflow: 3260 m3/hr

Noise level: 61db

Current: 530 watts

Power consumption: 3.2 amps

Weight: 18.52kg

Full diameter: 350mm

Length: 680mm
